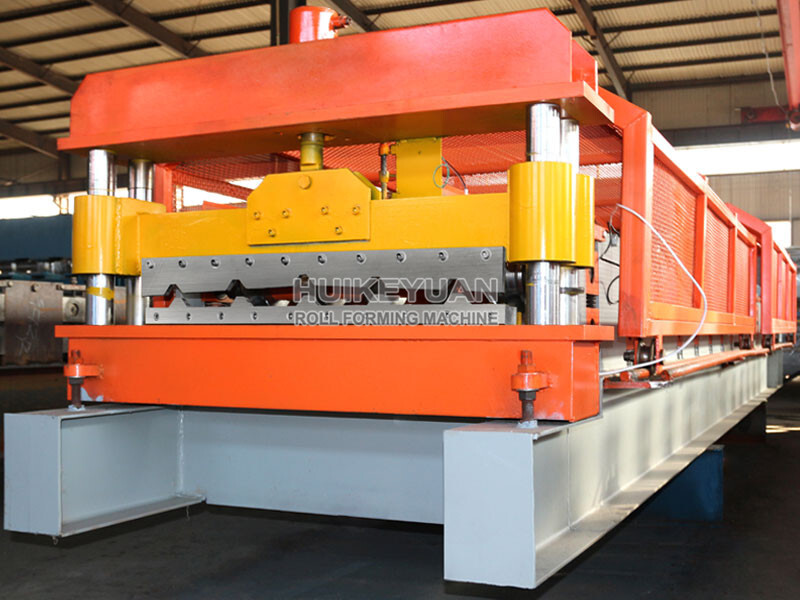

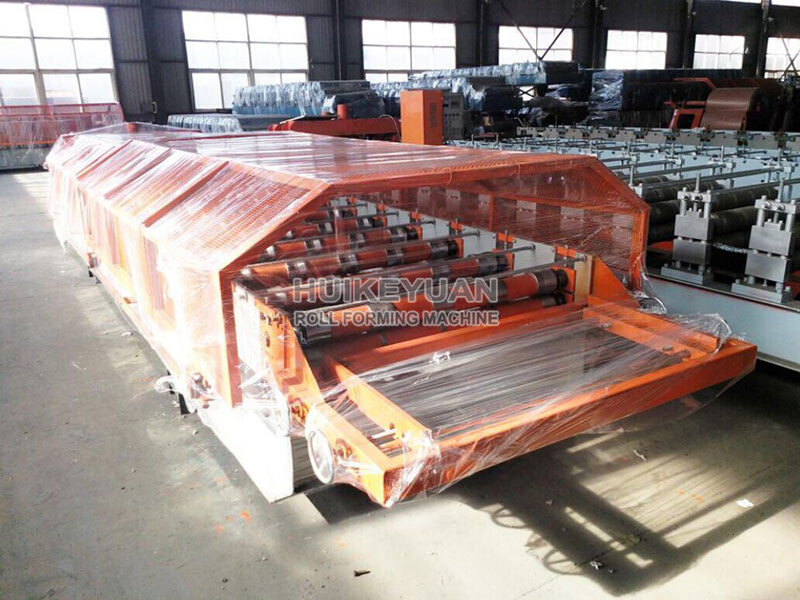

Trapezoidal Roof tile Roll Forming making Machine
Trapezoidal Roof tile Roll Forming making Machine
Trapezoidal Roof tile Roll Forming making Machine is not only solemn and elegant, but also beautiful and novel, with flat appearance, even corrugation, high utilization rate, high strength, high degree of production automation, low cost and durability.
technical parameter
1. Decoiler a. Manual feed with brake |
2. Cutting device a. Cutting mould: 1set b. Material of blade: CR12 with heat treatment HRC60-62 c. Cutting off type: stop cutting, Automatic measuring length d. Four guide post shear device,Cr12, Authentic material |
3. Main Forming System a. Feed width: Design according to customer size b. Thickness of sheet: 0.3mm-0.8mm c. Material of Roller: C45steel, modulation d. Diameter of main shaft: 80mm e. Power of main motor: 5.5kw f. Roller Station: 11rows g. chain: 1inch h. Equipment base: 300H steel i. Side plate thickness: 20mm |
4. Electrical control System a. PLC and HMI touch Screen b. Automatic length measurement c. Automatic quantity measurement d. Length measurement: Rotary Encoder e. Power: 380V/3phase/50Hz(According to your request) |
5. Hydraulic system a. Oil pump station：1set b. Motor power of Oil pump station:4kw c. With cooler system |
6. Run-out Table a. Frame: steel groove welded b. Length: 3m c. Quantity: 1 pc |
- Type:
- Tile Forming Machine
- Production Capacity:
- 5.5
- Applicable Industries:
- Hotels, Manufacturing Plant, Farms
- Condition:
- New
- Tile Type:
- Steel
- Use:
- Wall
- Place of Origin:
- Hebei, China
- Brand Name:
- HKY, Hui ke yuan
- Key Selling Points:
- Easy to Operate
- color:
- green
- certification:
- CE
- use:
- roof
- After-sales Service Provided:
- Online support
- Warranty:
- 2 years
