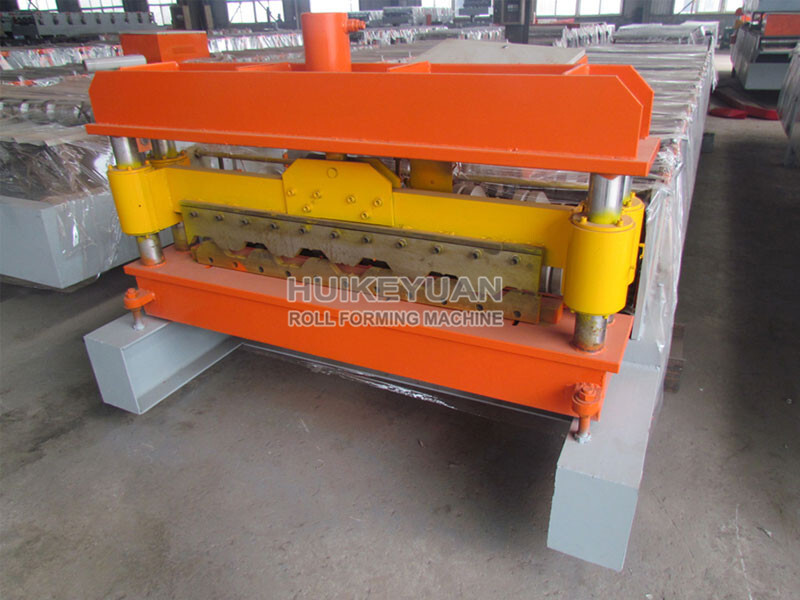

HKY-750 Metal Floor Deck Roll Forming Machine
HKY-750 Metal Floor Deck Roll Forming Machine
Metal Floor Deck Roll Forming Machine are widely used in the field of multi-high-rise steel structure building, mainly for the floor plane, which is the floor floor practice used most in the field of multi-high-rise steel structure building in China (press-Steel plate-concrete composite structure). It adopts hot dip galvanized steel sheet to be formed by cold bending of roll. Such as: power plant, electric power equipment company, automobile exhibition hall, steel structure workshop, cement warehouse, steel structure office, airport terminal building, railway station, stadium, concert hall, grand theater, large supermarket, logistics center, Olympic stadium and other steel structure building.
technical parameter
1. Decoiler a. Manual feed with brake |
2. Cutting device a. Cutting mould: 1set b. Material of blade: CR12 with heat treatment HRC60-62 c. Cutting off type: stop cutting, Automatic measuring length d. Four guide post shear device,Cr12, Authentic material |
3. Main Forming System a. Feed width: Design according to customer size b. Thickness of sheet: 0.3mm-0.8mm c. Material of Roller: C45steel, modulation d. Diameter of main shaft: 80mm e. Power of main motor: 5.5kw f. Roller Station: 11rows g. chain: 1inch h. Equipment base: 300H steel i. Side plate thickness: 20mm |
4. Electrical control System a. PLC and HMI touch Screen b. Automatic length measurement c. Automatic quantity measurement d. Length measurement: Rotary Encoder e. Power: 380V/3phase/50Hz(According to your request) |
5. Hydraulic system a. Oil pump station：1set b. Motor power of Oil pump station:4kw c. With cooler system |
6. Run-out Table a. Frame: steel groove welded b. Length: 3m c. Quantity: 1 pc |
- Type:
- Tile Forming Machine
- Production Capacity:
- 8-10m/min
- Power(W):
- 11.5KW
- Certification:
- ce
- Condition:
- New
- Tile Type:
- Colored Steel
- Use:
- Floor
- Place of Origin:
- Hebei, China
- Brand Name:
- HKY
- Voltage:
- 380v,3phase,50Hz
- Weight:
- about10.8t
- color:
- blue or according to the requirement
- package:
- nude
- conrtrol system:
- PLC
- quality system:
- ISO9001:2008
- life time:
- 10 years
- guarantee time:
- 1 year
- certification:
- CE
- place of origin:
- Hebei China(Mainland)
- payment:
- T/T
- port:
- tianjin new port of China
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Warranty:
- 12months
