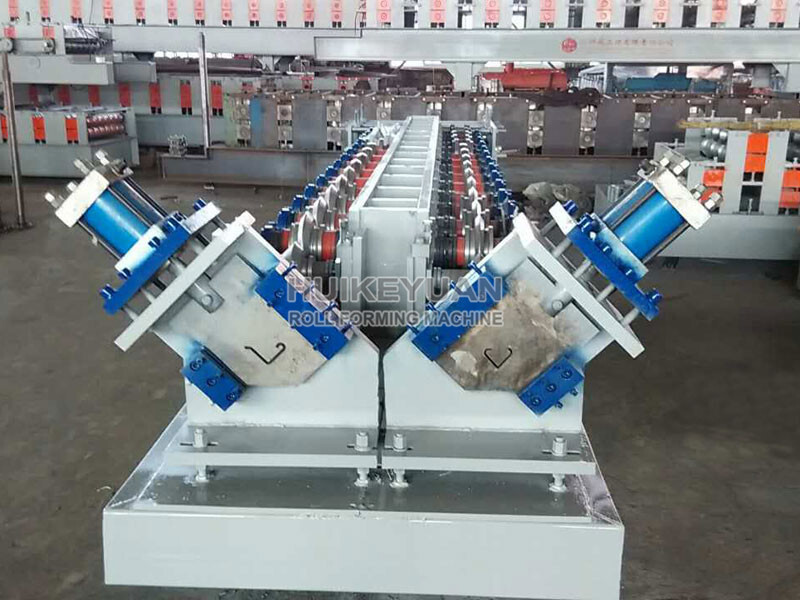

C U Channel Steel Frame Roll Forming Making Machine
C U Channel Steel Frame Roll Forming Making Machine
C U Channel Steel Frame Roll Forming Making Machine, by continuous cold rolling molding to produce complex profiles section, type multiple, versatile. We can according to customer design, manufacture different specifications of cold-formed, paint unit equipment.
technical parameter
1. Decoiler a. Manual with brake |
2. Leveling device a. Ensure the material level and straight b. The width can be adjusted. |
3. Main Forming System a. Material: GI sheet coil or cold rolled coil b. Thickness of sheet: ≤1mm c. Roller stations: 12rows d. Material of Roller: 20CrMnTi e. Material of shaft：45# steel f. Diameter of main shaft: 80mm g. Chain: 2 inches h. Power of main motor: 5.5kw i. Side plate thickness: 20mm j. Speed: 8-12m/minute |
4. Cutting device a. Cutting mould: 1set b. Material of blade: CR12 c. Cutting way: Stop to cutting |
5. Electrical System a. PLC and HMI touch Screen b. Automatic length measurement c. Automatic quantity measurement d. Length measurement: Rotary Encoder e. Power: 380V/50Hz/3PH(According to customer needs) |
6. Hydraulic system a. Oil pump station：1set b. Motor power of Oil pump station: 5.5kw c. With cooler system |
7. Run-out Table a. Frame: steel groove welded b. Length: 3m c. Quantity: 1 pc |
- Type:
- Tile Forming Machine
- Production Capacity:
- 8-12m/min
- Power(W):
- 30KW
- Certification:
- ISO/CE
- Condition:
- New
- Tile Type:
- Steel
- Use:
- shutter door
- Place of Origin:
- Hebei, China
- Brand Name:
- HKY
- Voltage:
- 380V
- Dimension(L*W*H):
- 8.6m*1.5m*2.0m
- Weight:
- 11T
- machine Use:
- garage door or door making
- machine Color:
- blue or according to your requirement
- machine speed:
- 8-12m/min
- Machine name:
- roller shutter door roll forming machine
- machine origin:
- hebei, china
- machine life time:
- 10 years
- factory place:
- botou, cangzhou city
- factory people:
- 100-500
- factory engineer:
- <50
- factory workshop:
- 6 workshops
- After-sales Service Provided:
- Engineers available to service machinery overseas
- Warranty:
- 12 months
